Test pressure |
Cast iron |
Ductile iron |
Bronze |
Stainless steel |
| 21 kg/cm2 |
25 kg/cm2 |
21 kg/cm2 |
35 kg/cm2 |
|
Working pressure |
Cast iron |
Ductile iron |
Bronze |
Stainless steel |
| 12 kg/cm2 |
16 kg/cm2 |
12 kg/cm2 |
22 kg/cm2 |
|
| |
|
|
|

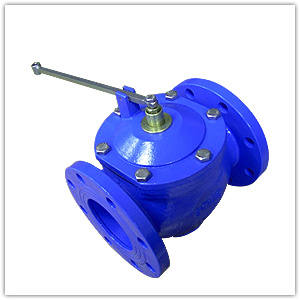

| 【Diaphragm type float valve】 |
- Connection ends：
JIS, ANSI, BS, DIN
- Other connection end can be arranged
- Applied temperature & conditions：
-15℃ ~60℃water
|
|
|
【Notice】 |
- working pressure should be greater than 0.2 kgf/cm2, please check the pressure before installation.
- Please remove impurities or metal dusts inside the pipe thoroughly. If possible, please add filter to prevent pipe blocking.
- Please uses high pressure float ball switch
- Avoid vertical installation
|
No |
Part name |
Material |
1 |
Upper cover |
Cast iron |
Ductile iron |
Bronze |
Stainless steel |
2 |
Spring |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
3 |
Bolt |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
4 |
Main body |
Cast iron |
Ductile iron |
Bronze |
Stainless steel |
5 |
Diaphragm |
NBR |
NBR |
NBR |
NBR |
6 |
Diaphragm fixing shaft |
Bronze |
Bronze |
Bronze |
Stainless steel |
7 |
Shaft |
Cast iron |
Ductile iron |
Bronze |
Stainless steel |
8 |
Sealing |
NBR |
NBR |
NBR |
NBR |
9 |
?Seat |
Bronze |
Bronze |
Bronze |
Stainless steel |
10 |
Shaft |
Bronze |
Bronze |
Bronze |
Stainless steel |
11 |
Float ball switch |
Bronze |
Bronze |
Stainless steel |
Stainless steel |
※High pressure float ball switch is option parts. |
Item no |
Connection |
Size |
L |
| DTF-40 |
Thread |
1.5" |
150 |
| DTF-50 |
Thread |
2" |
170 |
|
Item no |
Connection |
Size |
L |
| DFF-50 |
Flange |
2" |
190 |
| DFF-65 |
Flange |
2.5" |
210 |
| DFF-80 |
Flange |
3" |
225 |
| DFF-100 |
Flange |
4" |
250 |
| DFF-150 |
Flange |
6" |
310 |
| DFF-200 |
Flange |
8" |
420 |
| DFF-250 |
Flange |
10" |
530 |
| DFF-300 |
Flange |
12" |
650 |
|
Material |
Test pressure |
Maximum applied pressure |
1 1/2" |
2" |
2 1/2 " |
3" |
4" |
6" |
8" |
10" |
12" |
Cast iron |
21 |
12 |
--- |
● |
● |
● |
● |
● |
● |
● |
● |
Ductile iron |
32 |
20 |
--- |
● |
● |
● |
● |
● |
● |
● |
● |
Bronze |
21 |
12 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
Stainless steel |
35 |
22 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
Unit：kgf/cm 2
